CENTRAL VACUUM SYSTEM OVERVIEW

What is a central vacuum System?

 The system consists of a vacuum machine which is located away from your living area in a garage, utility room or cupboard etc.

The machine is linked by

Ø50mm PVC concealed pipework and LV wiring that are specifically designed for central vacuum systems.


Specially designed-longer radius fittings are used to maximize the airflow and a 'r

 The system consists of a vacuum machine which is located away from your living area in a garage, utility room or cupboard etc.

The machine is linked by

Ø50mm PVC concealed pipework and LV wiring that are specifically designed for central vacuum systems.


Specially designed-longer radius fittings are used to maximize the airflow and a 'restrictor elbow' is fitted on the valve mounting plate, to stop any unwanted items entering the system pipework.

A small number of conveniently placed inlet valves are located within a property and the system is activated by inserting a cleaning hose.

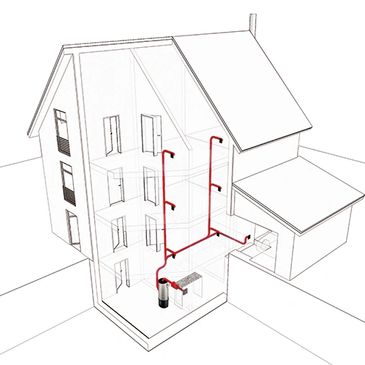

Typical Vacuum System Schematic

Typical Schematic

The system pipework can easily be concealed within floors, ceilings, service voids and lofts etc, which also includes the low voltage wiring that inter connects each inlet valve with the vacuum machine.


The number of inlet valves are determined by the size and layout of a property, and  an average of four valves are required for a 3 to 6 bedroom home.

System Use

System Use

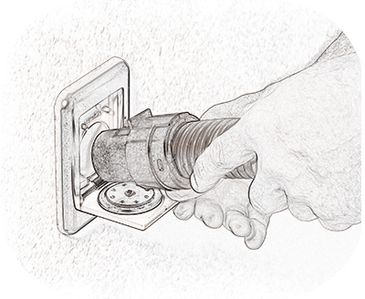

To activate the system, simply insert the cleaning hose into any of the inlet valves, which automatically starts the vacuum machine.


The inlet valves are generally positioned at the same height as and electrical socket (50cm F.F.L) and the valves are available in a range of styles, finishes and colours to suit your décor.

THE BENEFITS OF A CENTRAL VACUUM SYSTEM central vacuum cleaning systems bui

Powerful Motors

 The motors used in a CVC vacuum machine are generally larger and more powerful, producing high air watts, delivering greater levels of vacuum suction.

Cleaner Environment

 There is no re-circulation of the fine dust spores and mites that can be evident when using portable vacuum cleaners, and100% of the dust is removed and deposited within the dirt bucket.

Health Benefits

 The system helps to remove harmful irritants, and pet dander that are responsible for causing allergies and asthma conditions to both children and adults alike.

Quieter Cleaning

Faster & Versatile

 Despite the larger motor of a central vacuum system, they offer much quieter cleaning and lower noise levels at the end of the cleaning hose.

Faster & Versatile

Faster & Versatile

Faster & Versatile

Central Vacuums by Vacusystems Limited

 Using your central vacuum system couldn’t be easier, the lightweight hose and array of cleaning attachments makes cleaning far more versatile and faster too.

Added Value

Faster & Versatile

Faster & Versatile

The inclusion of a central vacuum cleaning system, adds saleable value to both domestic and commercial properties.

FREE DESIGN & ESTIMATE SERVICE

Simply email a digital copy of your drawings and we’ll process a no-obligation initial design and fully costed estimate for your project.
